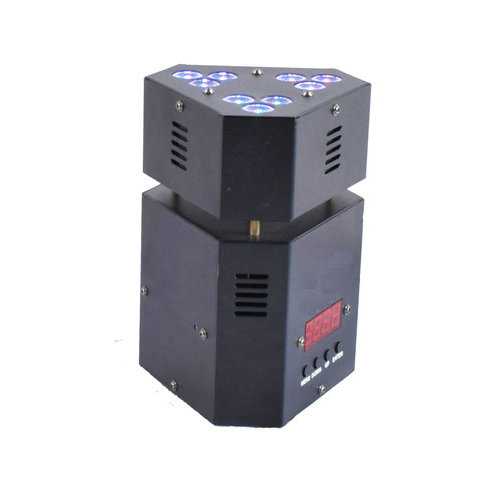

LED Truss Warmer

Model : QL-HJ9

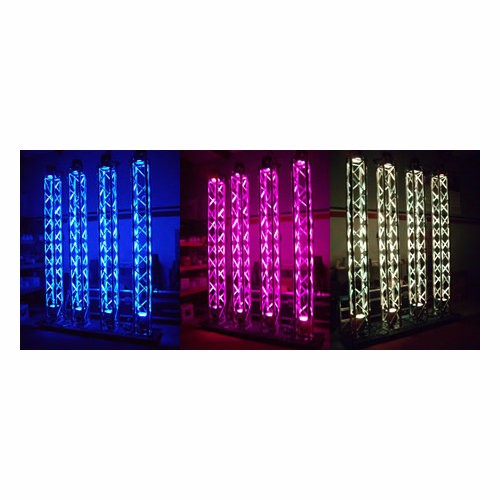

this is a LED truss warmer,with 9pcs 3w RGB 3 in 1 LEDs, without fan cool by inside heat sink,it colors the truss vividly

LAMP SOURCE

Lamp: 9 x 3w   RGB 3 in 1  LEDs

Average Life Span: > 30,000h

OPTICAL SYSTEM

Lens: 25°  optional 45°

COLOR SYSTEM

RGB color mixing

EFFECTS

smooth linear dimmer

High light output, low glare

Fast speed strobe 1~25Hz

Color macro and gradual color change effects

CONTROL AND PROGRAMMING
Control channel: 8 control channel modes

Protocol: Standard DMX512

Menu display: LED display

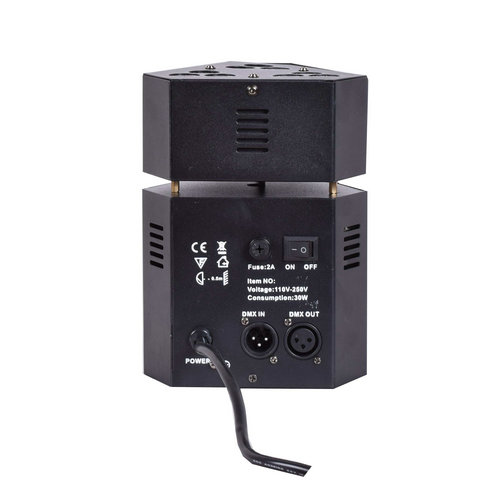

DMX signal connection: 3-pin XLR input/output

BODY

Aluminum alloy structure

ELECTRONIC CONTROL TECHNOLOGY
Fixture reset is controlled through menu or light console

0-100% dimming

Constant current drive mode

Temperature sensor detection, intelligent light source power adjustment

DMX channel level monitoring

Fixture information query

Initial brightness setting for all colors

POWER SUPPLY

AC100-240V 50/60Hz

Switch power

Input Power: 30W

SAFETY PROTECTION

Overcurrent, overvoltage and overheating protection

WORKING POSITION

Install in any safety position

WORKING TEMPERATURE

Temperature: -6℃～40℃

Humidity: 5%~85%

IP RATE

IP20

PHYSICAL

Product dimension: 150mm×160mm×281mm
Cardboard packing 4 in 1 : 35 x 35 x 59 CM, weight 11kgs
Flightcase packing 12 in 1 : 66 x 57 x 40 CM, weight 45kgs

N.W.: 2KG
