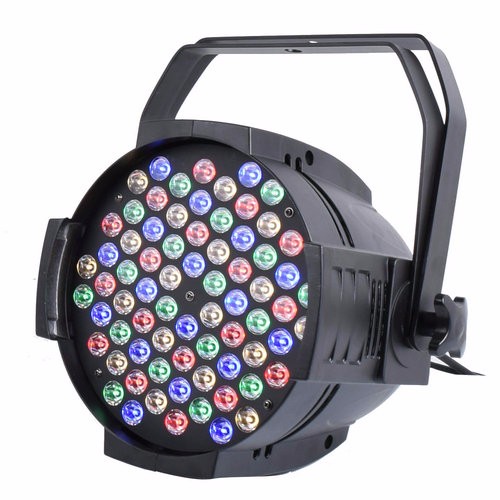

LED Par Light 72 x 3w

Model : QL-ZL72
this is a LED color wash light with 72pcs HQ 3w LEDs, RGB color mixing, 16bits smooth dimming.low noice fan cooling.

LAMP SOURCE

Lamp: A : 72 x 3w   R18 G18 B18 W18  LEDs
          B : 72 x 3w   Tri RGB 3 in 1 LEDs
          C : 72 x 3w   UV  LEDs

Average Life Span: > 30,000h

OPTICAL SYSTEM

Lens: 25°  optional 45°

COLOR SYSTEM

RGBW color mixing

EFFECTS

smooth linear dimmer

High light output, low glare

Fast speed strobe 1~25Hz

Color macro and gradual color change effects

CONTROL AND PROGRAMMING
Control channel: 8 control channel modes

Protocol: Standard DMX512

Menu display: LED display
DMX signal connection: 3-pin XLR input/output

BODY

Aluminum alloy die-casting structure

ELECTRONIC CONTROL TECHNOLOGY
Fixture reset is controlled through menu or light console

0-100% dimming

Constant current drive mode

Temperature sensor detection, intelligent light source power adjustment

DMX channel level monitoring

Fixture information query

Initial brightness setting for all colors
Fan cooling

POWER SUPPLY

AC100-240V 50/60Hz

Switch power

Input Power: 230W

SAFETY PROTECTION

Overcurrent, overvoltage and overheating protection

WORKING POSITION

Install in any safety position

WORKING TEMPERATURE

Temperature: -6℃～40℃

Humidity: 5%~85%

IP RATE

IP20

PHYSICAL

Product dimension: 270mm×270mm×381mm
Cardboard packing 4 in 1 : 59 x 59 x 43 CM, weight 16kgs
Flightcase packing 8 in 1 : 101 x 70 x 66 CM, weight 67kgs

N.W.: 4.5KG
