DMX Motorized LED Color Ball

QL-MDXCB

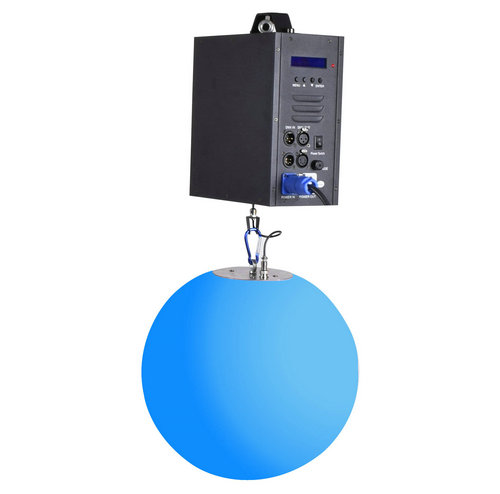

this is a DMX controlled lifting motor machine for a kinetic LED color ball, lifting speed 0.6m / s, lifting height 3 meters or 6 meters optional.LED color ball diameters 25cm, or 35cm optional.

LIGHT SOURCE

Light Source: 54pcs tricolor RGB SMD LEDs  TOTAL 27W

Life Span: ≥30,000 h

OPTICAL SYSTEM

RGB color mixing, LED ball diameter 25CM, 35CM optional

FEATURES

Housing: Aluminum stretching material
3-pin and 5-pin XLR connectors
Powercon In/Out for daisy-chain
Lifting wire 3 meters / 6 meters
Lifting speed 0.6 m/s
Load with cable Maximum 1.8 kgs
Machanical Safty control device

ELECTRICAL

AC: 100-240V 50/60 Hz

Input Power: 100W

ELECTRONIC CONTROL

Protocol: DMX512

Channel Mode: 9CH / 5CH

Control Panel: blue LCD
Electronic protection against short circuit
Adjustable fan cooling

IP RATE

IP20

INSTALLMENT

Position: Truss

Hanging: Standard hanging

Safety: Safety cable

WORKING ENVIRONMENT

Temperature: -5℃~40℃

Humidity: 5%~85%

PHYSICAL

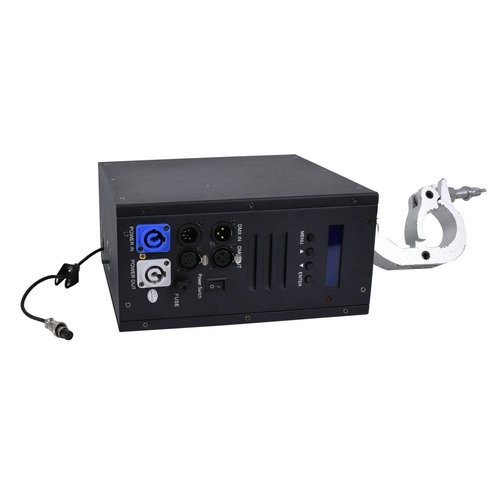

Motor unit size 26 x 24 x 13 CM
Motor unit weight 6.2 kgs

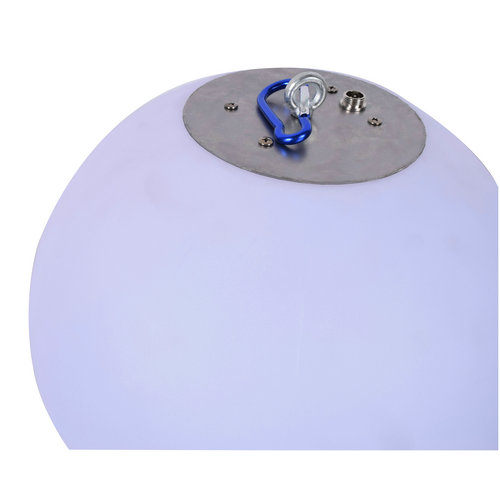

LED Ball weight 1.4 kgs
Motor unit flightcase 10 in 1 : 81 x 57 x 61 CM  88kgs
LED Ball flightcase 6 in 1 :   90 x 60 x 45 CM  30kg
